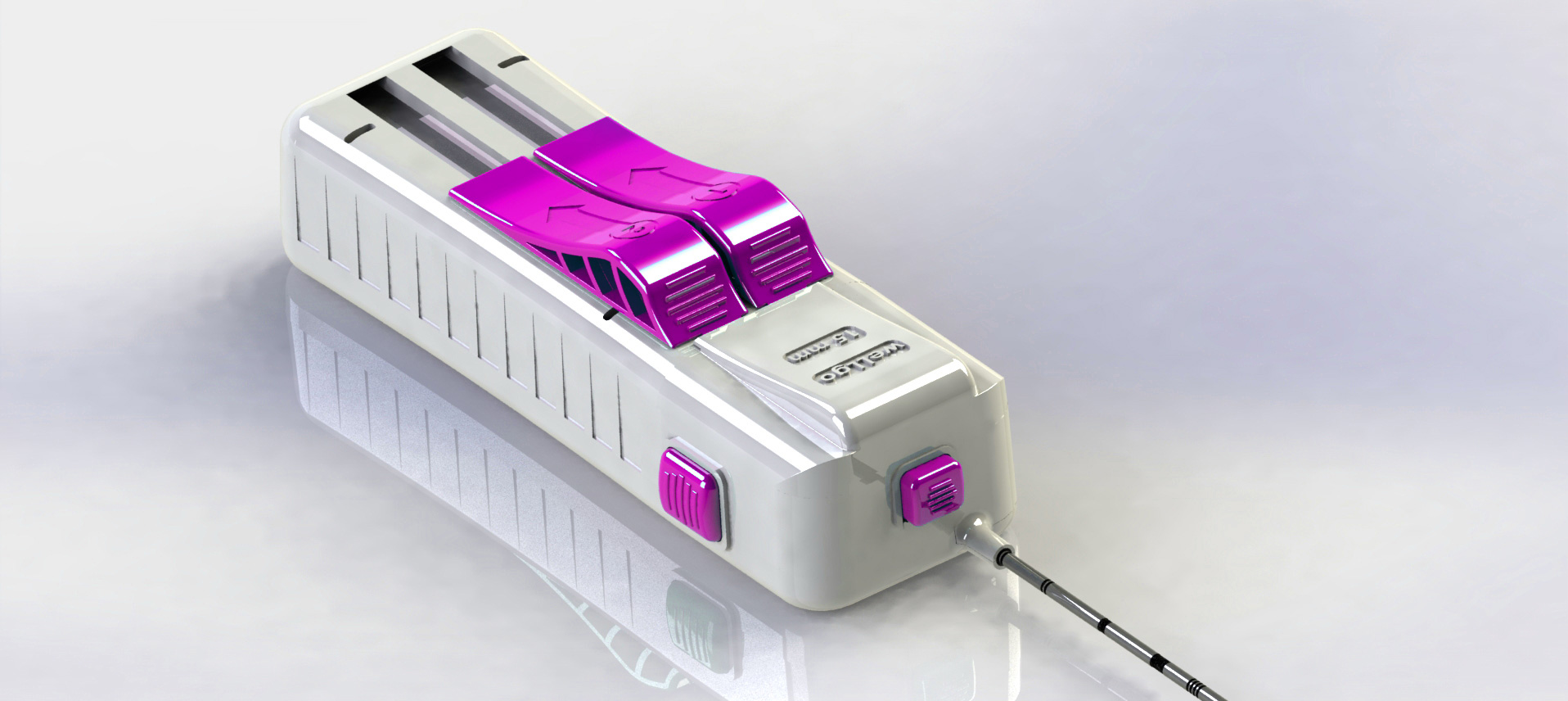

WAVE AUTOMATIC BIOPSY NEEDLE
Description
- Easy and one hand operated with 2-stage arming
- Echogenic and atraumatic needle tip design
- Available in 15mm or 22mm penetration depth
- Ergonomic and light weight design
- Centimeter marked cannula
- Choice of ergonomic two firing buttons
- Coaxial needles are optionally available
It is a disposable automatic biopsy device used to take samples of soft tissues and organs. This a guilotine type automatic biopsy needle with a stylet with sample notch and a cm marked echogenic cutting cannula.
Instruction for use:
IFU-03 WAVE Automatic Biopsy Needle – EN
| Ref. No 15mm | Ref. No 22mm | Diameter (G) | Length (cm) |
| 031409S | 031409 | 14 | 09 |
| 031410S | 031410 | 14 | 10 |
| 031412S | 031412 | 14 | 12 |
| 031415S | 031415 | 14 | 15 |
| 031416S | 031416 | 14 | 16 |
| 031420S | 031420 | 14 | 20 |
| 031609S | 031609 | 16 | 09 |
| 031610S | 031610 | 16 | 10 |
| 031612S | 031612 | 16 | 12 |
| 031615S | 031615 | 16 | 15 |
| 031616S | 031616 | 16 | 16 |
| 031620S | 031620 | 16 | 20 |
| 031625S | 031625 | 16 | 25 |
| 031809S | 031809 | 18 | 09 |
| 031810S | 031810 | 18 | 10 |
| 031812S | 031812 | 18 | 12 |
| 031815S | 031815 | 18 | 15 |
| 031816S | 031816 | 18 | 16 |
| 031820S | 031820 | 18 | 20 |
| 031825S | 031825 | 18 | 25 |
| 031830S | 031830 | 18 | 30 |
| 032010S | 032010 | 20 | 10 |
| 032015S | 032015 | 20 | 15 |
| 032020S | 032020 | 20 | 20 |
